SF-N

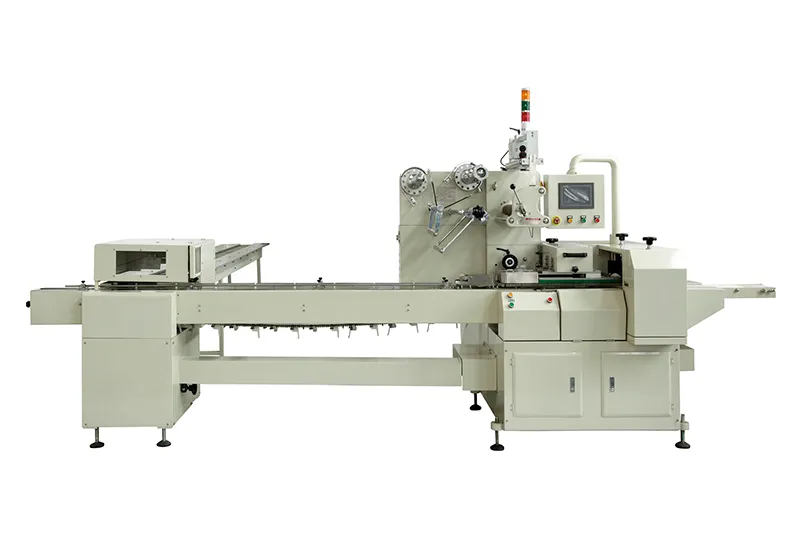

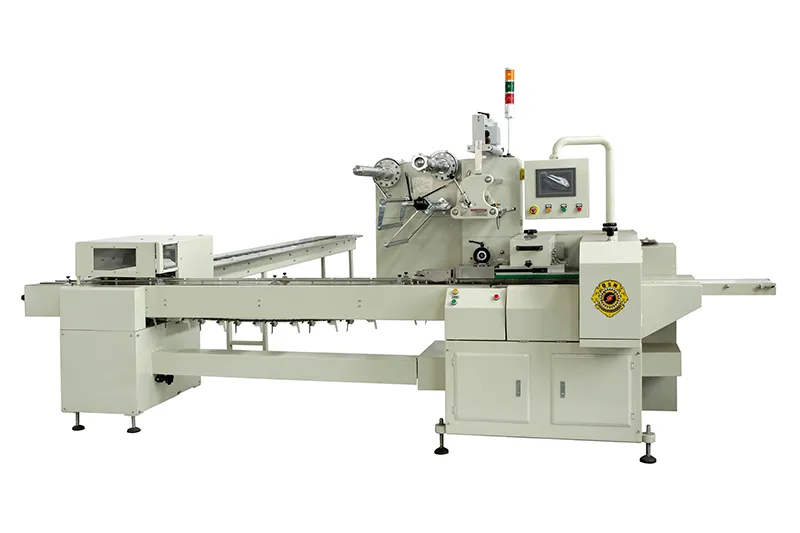

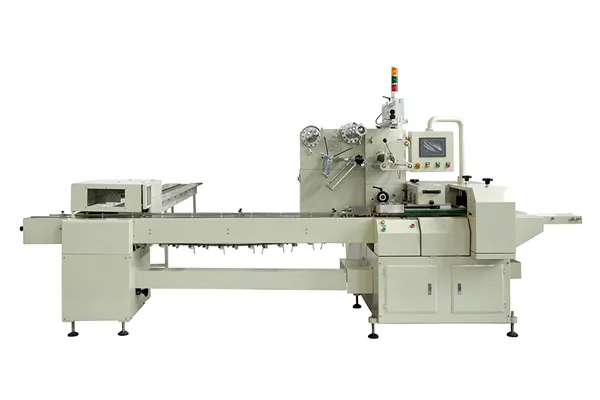

Trayless Horizontal Packaging Machine, SF-N (Biscuit-on-Edge Packaging)
Horizontal packaging machine for trayless on-edge wrapping of biscuits, crackers, wafers, and other flat or round food products
Applications
SF-N biscuit-on-edge packaging type horizontal flow wrapper is suitable for trayless high-speed packaging of:
- Biscuits
- Other regular flat or round products
Features
- Adopts an integral welded structure with 16 mm-thick steel plates, providing high rigidity and stable operation.
- Equipped with a high-performance servo motor drive system for precise control and stepless speed regulation. This enables dynamic parameter adjustment during operation, ensuring efficient and stable performance.
- Featuring a large-sized touch screen panel for easy operation, with product parameters’ storage and recall functions, allowing quick product changeover by selecting the corresponding parameters.
- Photoelectric detection with bidirectional tracking effectively eliminates packaging errors and reduces material waste.

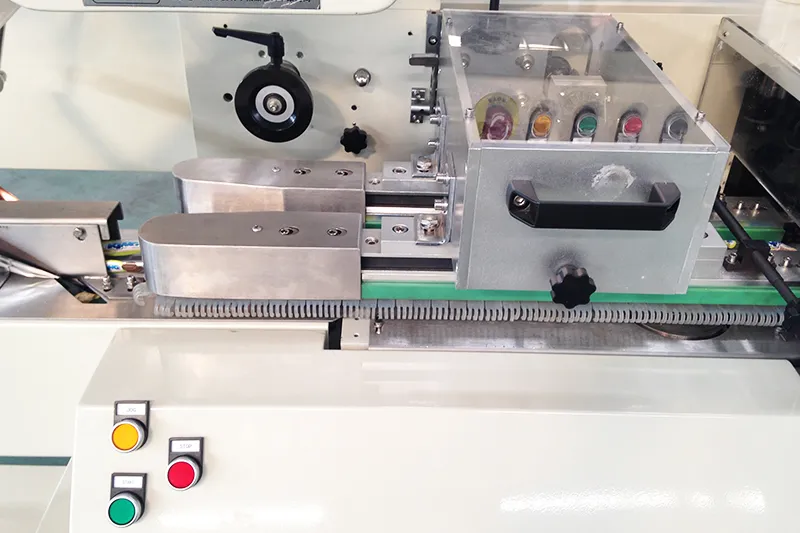

- New longitudinal hot sealing system, enabling sealing at low temperatures, reducing film scorching during stoppage, and significantly lowering the reject rate.
- Automatic display of bag length and speed, ensuring accurate cutting.
- The parts of the flow wrapping machine that come into contact with products are made of SUS304 stainless steel to prevent contamination. Other parts may use non-stainless materials, provided they do not contaminate the product, ensuring the flow wrapper meets standardization requirements.
Specifications
| Model | SF-N2 450/150 |
| Bag material | Laminated films suitable for hot-sealing: OPP/PE, AL/PE, OPP/PE, etc. |
| Max. film width (mm) | 450 |
| Bag size (mm); L: length; W: width; H: height | L: 80-240; W: 40-80; H: 35-70 |
| Capacity (bags/min) | 30-80 |
| Power supply | Single-phase 220 V, 50 Hz |
| Total power (kW) | 5 |
| Overall dimensions (mm) | 4500*972*1670 (incl. infeed conveyor, excl. pusher conveyor) |
| Weight (kg) | 1300 |
