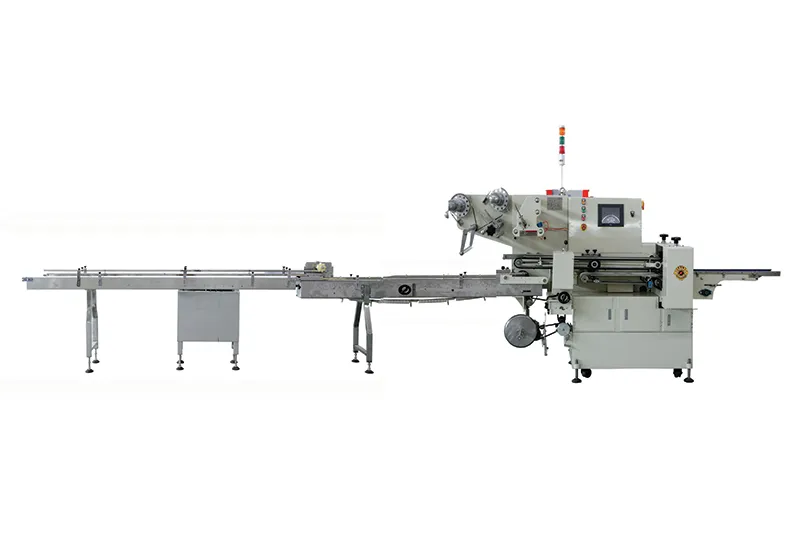

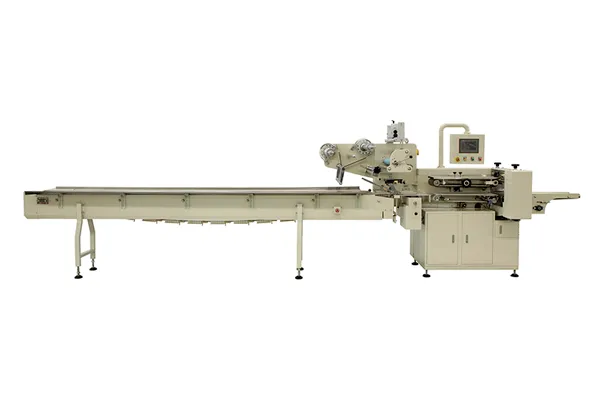

    Horizontal Packaging Machine with Heat Shrink Tunnel, SF-R

    Servo-driven horizontal shrink packaging machine for high-speed sealing and shrink wrapping of food, beverage, cosmetic and daily-use products

    The SF-R servo-driven fully automatic heat shrink packaging machine is built for continuous production lines and high-volume packaging tasks. Based on specific product needs, it can be equipped with an automatic feeding system to achieve unmanned feeding. The flow wrapping machine features fully enclosed packaging and operates continuously, ensuring high overall efficiency. After packaging, the product seal appears as a clean, linear seal.

    Leave a Message
    Applications

    The heat shrink horizontal flow wrapper is suitable for packaging that needs heat-shrink packaging, such as:

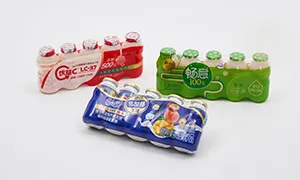

    • SF-R (with Heat Shrink Tunnel)Beverage

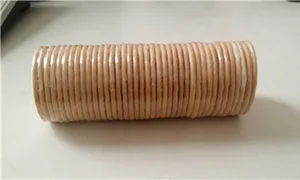

    • SF-R (with Heat Shrink Tunnel)Biscuits

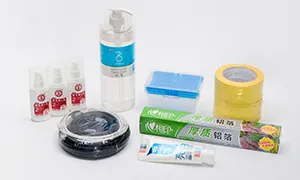

    • SF-R (with Heat Shrink Tunnel)Personal care products
    • SF-R (with Heat Shrink Tunnel)Instant noodles
    Features
    • Equipped with a large 36 × 34 cm full-color touch screen control system with easy operation, offering a clear visual
    • Available in single or multiple servo motors for precise control
    • Features an AC motor with a frequency inverter, enabling stepless speed regulation and dynamic adjustment during operation
    • Adopts a new longitudinal hot sealing system, allowing low-temperature sealing, which reduces film scorching and reject rate during stoppage

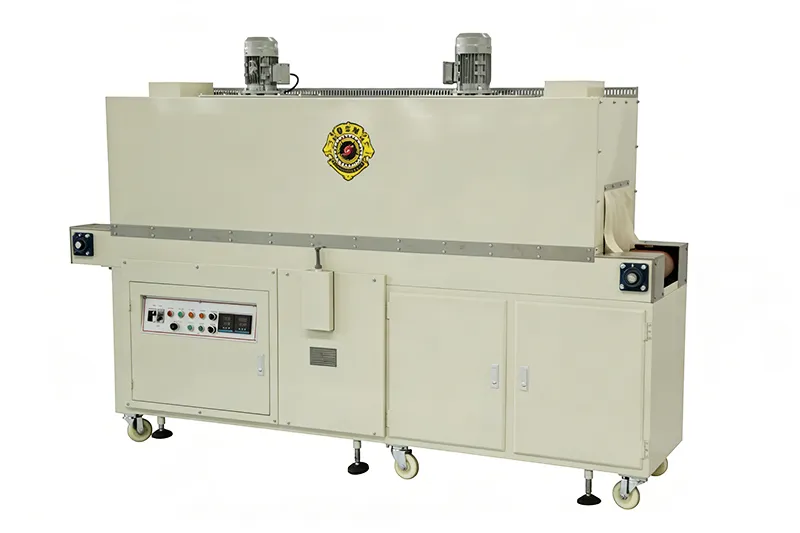

    • Heat shrink tunnel with independent dual temperature-zone controls (front/rear or upper/lower), allowing automatic temperature adjustment and consistent shrinkage results
    • Optimized hot air circulation system with uniform airflow, ensuring even heating and smooth package appearance
    • Optional modular extensions like electrostatic adsorption that enhance system adaptability
    Specifications
    Model SF-R 450/120 SF-R 450/150 SF-R 590/120 SF-R 590/150 SF-R 590/180 SF-R 590/210
    Bag material Heat shrink film: PVC, POF, etc.
    Max. film width (mm) 450 450 590 590 590 590
    Bag size (mm)
    L*W*H    		 L: 100-400
    W: 10-150
    H: 15-50     		L: 120-450
    W: 10-150
    H: 30-70     		L: 100-400
    W: 30-200
    H: 15-50     		L: 120-450
    W: 30-200
    H: 30-70     		L: 140-480
    W: 30-200
    H: 40-100     		L: 180-520
    W: 30-200
    H: 50-130
    Capacity (bags/min) 30-150 30-120 30-150 30-120 30-100 30-80
    Overall dimensions (mm) 5000×965×1750 5000×1105×1750
    Weight (kg) 1000 1000 1200 1200 1200 1200
    Motor power (kW) Main motor: 1.1 kW (1 unit); film motor: 0.75 kW
    Power supply Main motor: single-phase 220 V, 50 Hz; Shrink tunnel: three-phase 380 V, 50 Hz
    Total power (kW) Main machine: 4.5 kW, shrink tunnel: 16.5 kW
