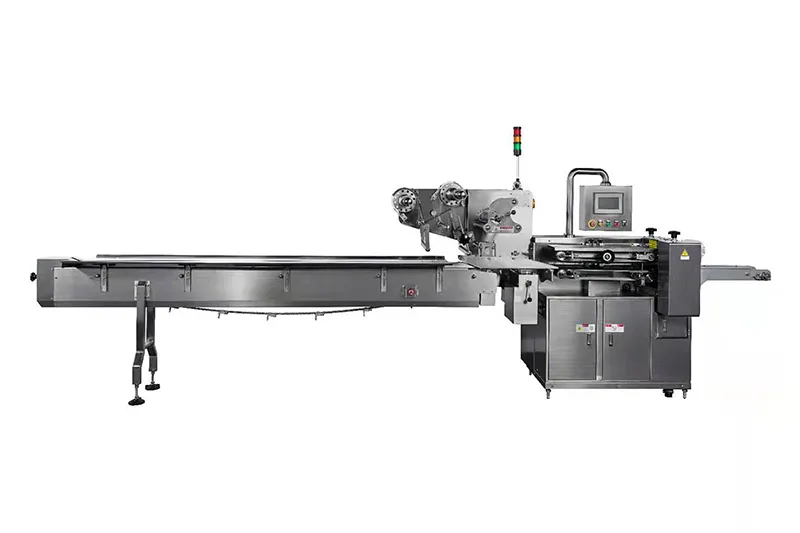

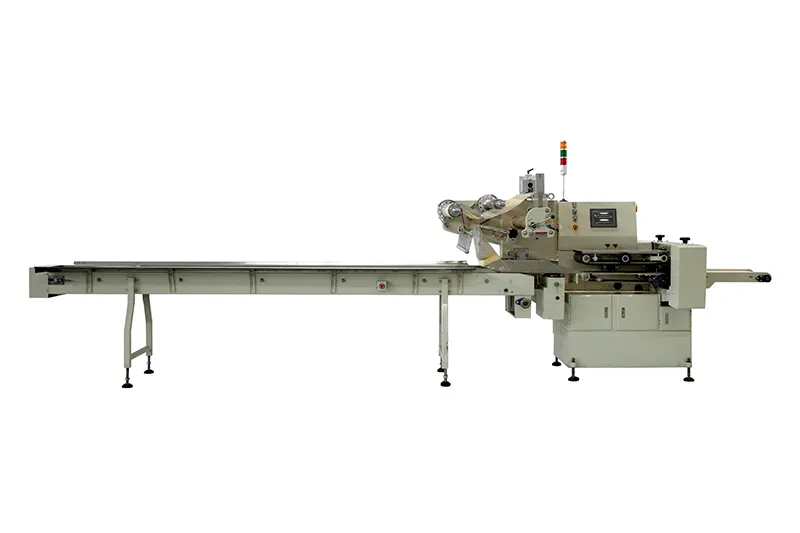

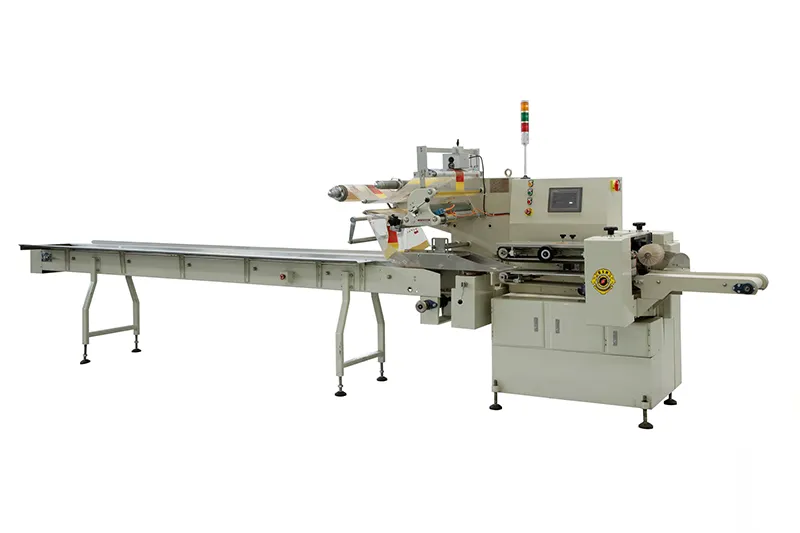

    Horizontal Packaging Machine, SF-A

    Automatic flow packing machine for packaging small to medium-sized food, pharmaceutical products, and industrial parts with or without trays

    SF-A series horizontal flow wrapping machine offers a stable performance with versatile general-purpose applications that enable multiple products to be packaged on a single machine. This automatic multi-purpose flow wrapper is engineered for high-speed continuous operation, which places high demands on the overall strength and rigidity of the machine structure.

    Leave a Message
    Applications

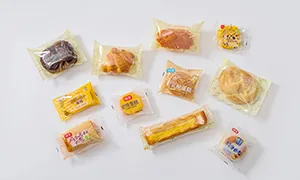

    Suitable for packaging various regular solid products or tray-packed products, including:

    • SF-A (Economic Multi-Purpose Type)Biscuits
    • SF-A (Economic Multi-Purpose Type)Bread
    • SF-A (Economic Multi-Purpose Type)Pastry
    • SF-A (Economic Multi-Purpose Type)Instant noodles

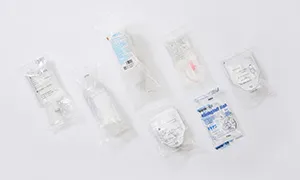

    • SF-A (Economic Multi-Purpose Type)Pharmaceutical products
    • SF-A (Economic Multi-Purpose Type)Industrial parts
    Features
    • Equipped with servo motors for more precise control, achieving stepless speed control and dynamic adjustment during operation.

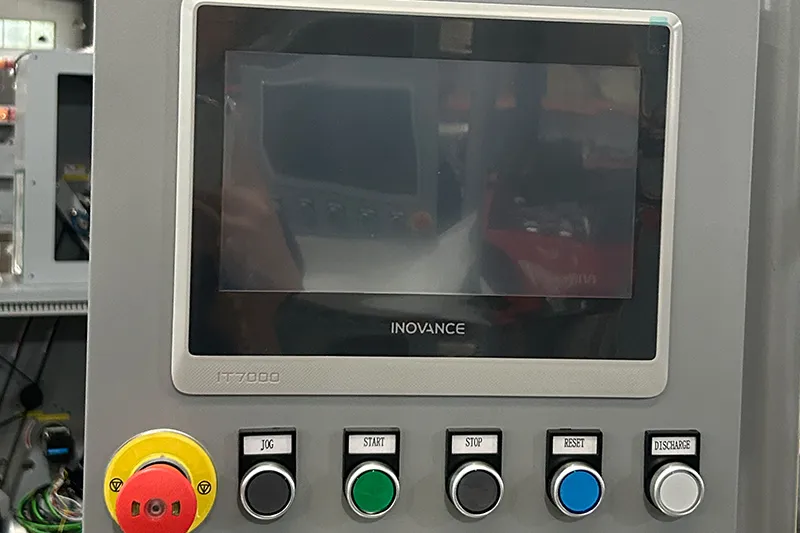

    • Wide full-color touch screen (up to 36×34×13.5 cm) for easier packaging management, supporting packaging data storage and recall functions, automatic adjustment, tracking and cutting point search, alarm prompts, fault indication, cumulative counting, automatic display of bag length and speed, and accurate cutting.
    • Photoelectric detection with bidirectional tracking to effectively eliminate packaging errors and reduce material waste.
    • New longitudinal hot sealing system enables sealing at lower temperatures, minimizing film scorching during stops and significantly lowering the reject rate.

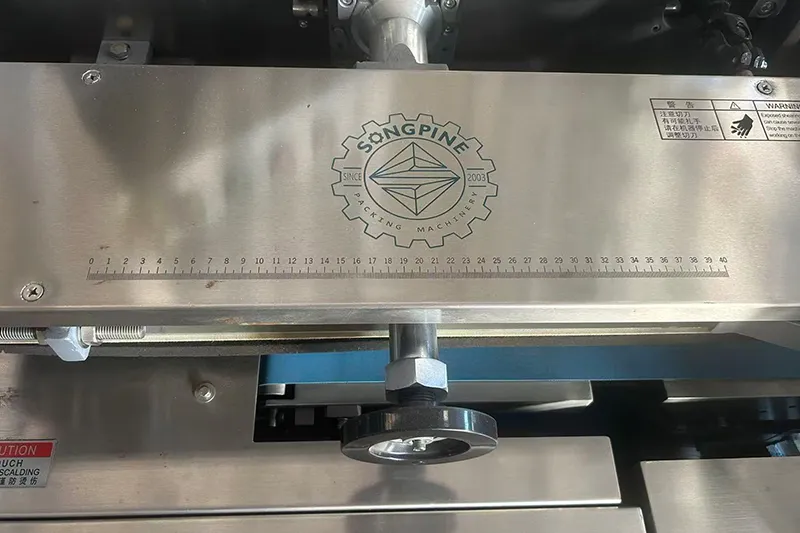

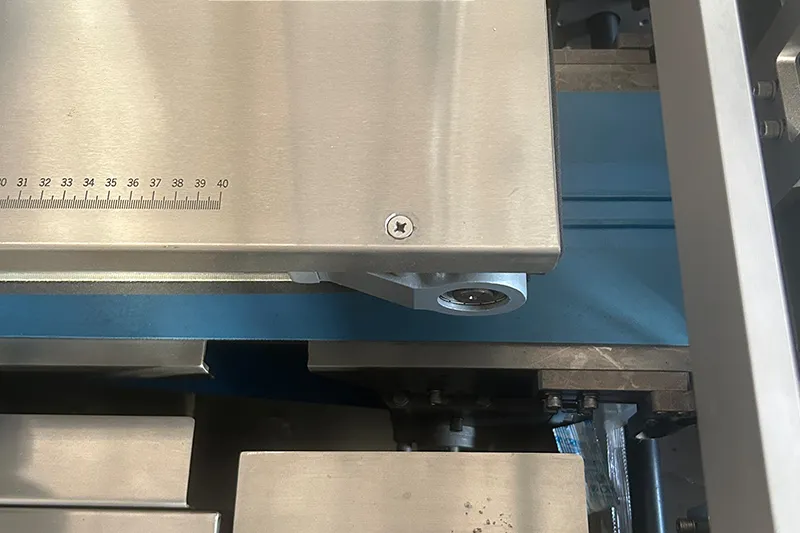

    • Adjustable bag former with configurable long and short pitch settings for convenient product changeover.
    Specifications
    Model SF-A 450/99-2 SF-A 450/99 SF-A 450/120 SF-A 450/150 SF-A 590/120 SF-A 590/150 SF-A 590/180
    Max. film width (mm) 420 420 420 420 560 560 560
    Bag size (mm)
    L*W*H     		L:65-190
    W:10-150
    H:5-25;25-35     		L:90-400
    W:10-150
    H:5-25;25-40     		L:100-400
    W:10-150
    H:10-30;30-55     		L:120-450
    W:10-150
    H:30-50;40-75     		L:100-400
    W:30-200
    H:10-30;30-55     		L:120-450
    W:30-200
    H:30-50;40-75     		L:140-480
    W:30-200
    H:40-70;60-100
    Capacity (bags/min) 60-250 30-200 30-180 30-150 30-150 30-120 30-100
    Overall dimensions (mm) 5020*1010*1650 (incl. 3 m conveyor) 5055*1130*1680 (incl. 3 m conveyor)
    Bag material Laminated films suitable for hot-sealing:OPP/PP,PT/PE,AL/PE,etc.
    Total weight (kg) 1000 1200
    Motor power (kW) 5

    Actual technical parameters may vary depending on the packaged product and packaging requirements. Final specifications are subject to mutual confirmation.
