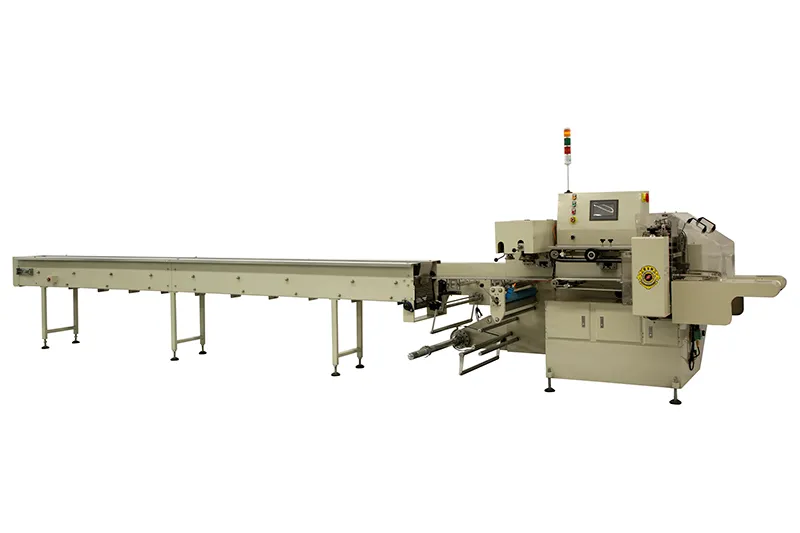

    Box Motion Horizontal Packaging Machine, SF-DH (Bottom Film Feed)

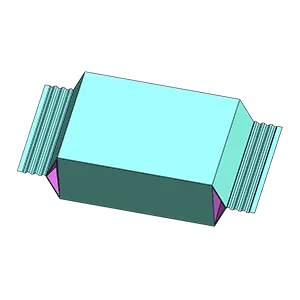

    Automatic pillow bag packing machine with reciprocating sealing for tight and stable packaging of loose or multi-bag products

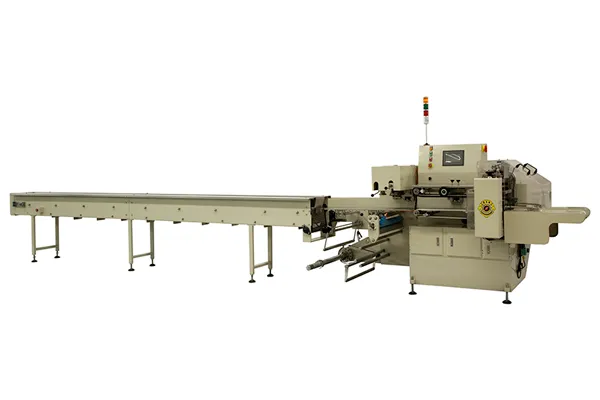

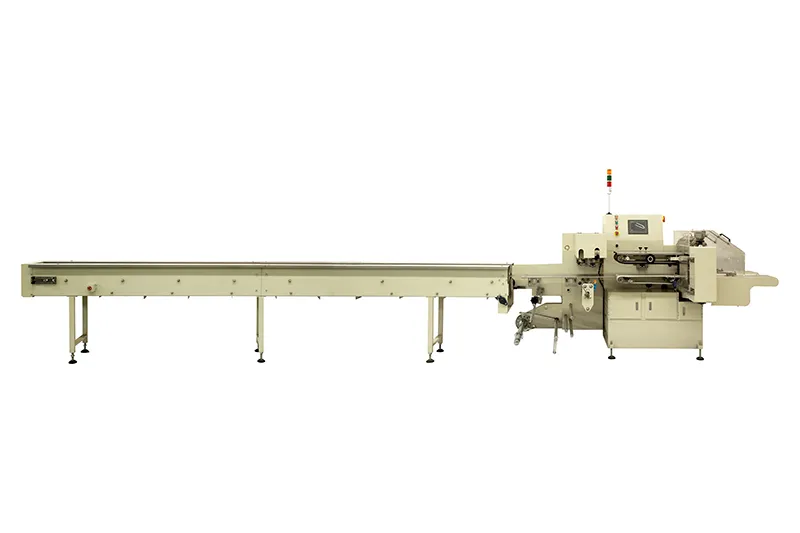

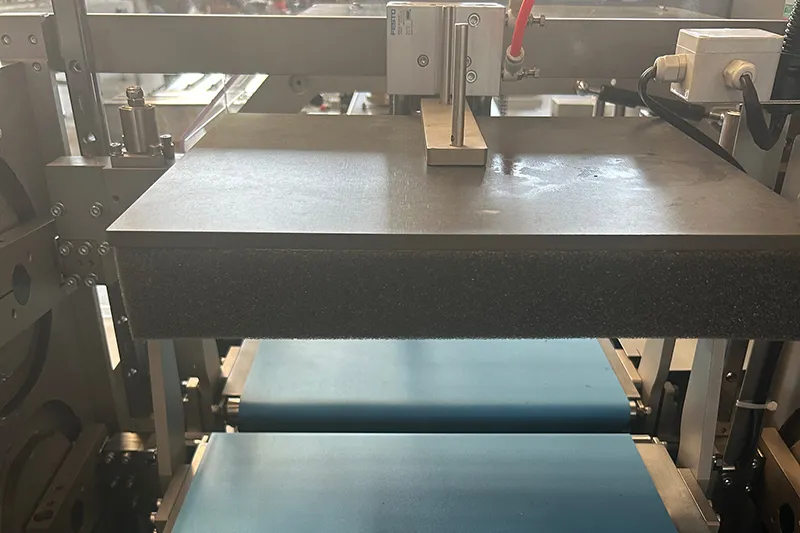

    SF-DH3 horizontal flow wrapping machine adopts bottom film feeding, forming, and heat sealing, and is equipped with automatic film feeding, stepless speed regulation, and photoelectric registration, delivering efficient and stable operation with neat finished packaging. It adopts reciprocating transverse sealing, making it more suitable for taller-sized products, providing improved corner tucking, a more attractive packaging appearance, and stronger sealing performance.

    Leave a Message
    Applications

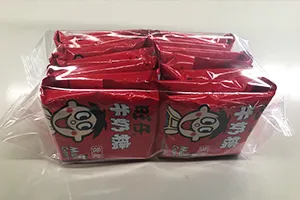

    This bottom film filed reciprocating seal flow wrapper is suitable for compact packaging of taller products using short bag lengths and multi-bag packaging of loose products, such as:

    • SF-DH3 (Bottom Film Feed & Reciprocating Seal Type) Candy & Snacks
    • SF-DH3 (Bottom Film Feed & Reciprocating Seal Type)Instant noodles
    • SF-DH3 (Bottom Film Feed & Reciprocating Seal Type)Frozen foods

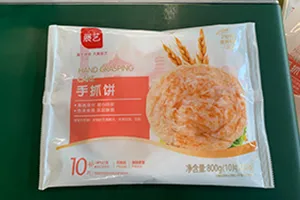

    • SF-DH3 (Bottom Film Feed & Reciprocating Seal Type)Frozen flatbreads
    Specifications
    Model SF-DH3 SF-DH3 SF-DH3 SF-DH3 SF-DH3 SF-DH3
    Spec. 590/120 590/150 720/120 720/150 720/210 900/210
    Max. film width (mm) ＜560 ＜560 ＜680 ＜680 ＜680 ＜860
    Bag size (mm)
    L*W*H    		 L: 100-300
    W: 30-170
    H: 15-80     		L: 120-350
    W: 30-170
    H: 30-100     		L: 100-300
    W: 30-260
    H: 15-80     		L: 120-350
    W: 30-260
    H: 30-100     		L: 120-450
    W: 60-260
    H: 80-150     		L: 180-450
    W: 100-280
    H: 80-150
    Note: If corner tuck is not required, product width + product height < 200 Note: If corner tuck is not required, product width + product height < 300
    Capacity (bags/min) 30-80 30-70 30-70 30-60 20-50 15-40
    Overall dimensions (mm) 5400×1200×1800 (incl. 3 m conveyor) 5700×1300×1800 (incl. 3 m conveyor) 6000×1500×1800 (incl. 3 m conveyor)
    Bag material Laminated films suitable for hot-sealing: Paper/PE, OPP/PE, PT/PE, AL/PE, etc.
    Weight (kg) 1200 1200 1300 1300 1300 1500
    Motor power (kW) Main motor: 1.5 kW (1 unit); film motor: 0.75 kW (1 unit); infeed conveyor motor: 0.75 kW (1 unit)
    Heating power 450W × 2 400W × 4
    Power source Single-phase 220 V, 50 Hz
    Total power (kW) 6 (excluding optional accessories)
