    Horizontal Flow Wrapper, SF-E

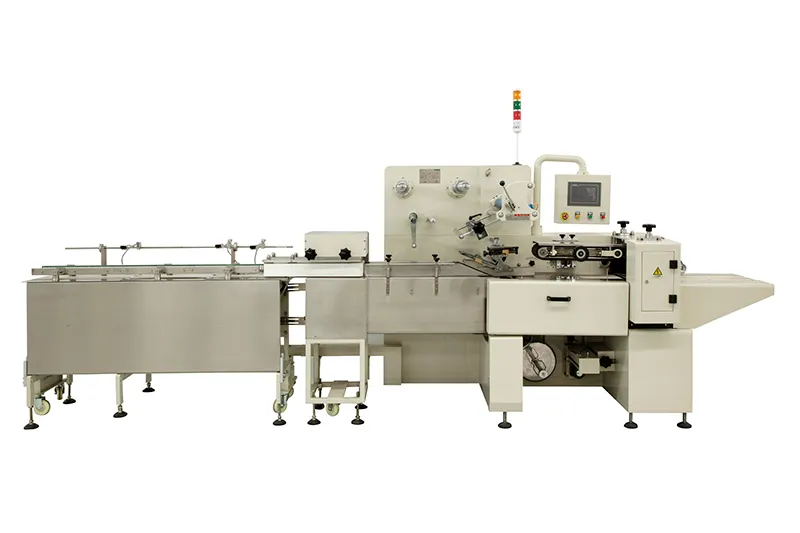

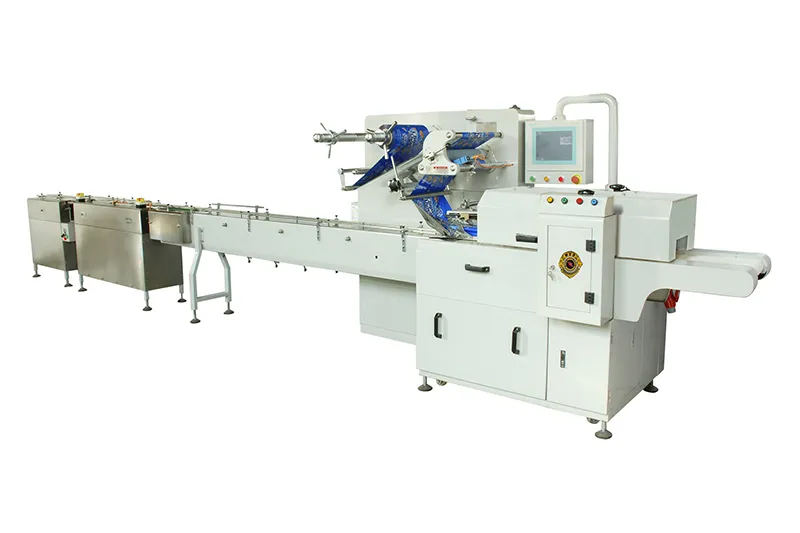

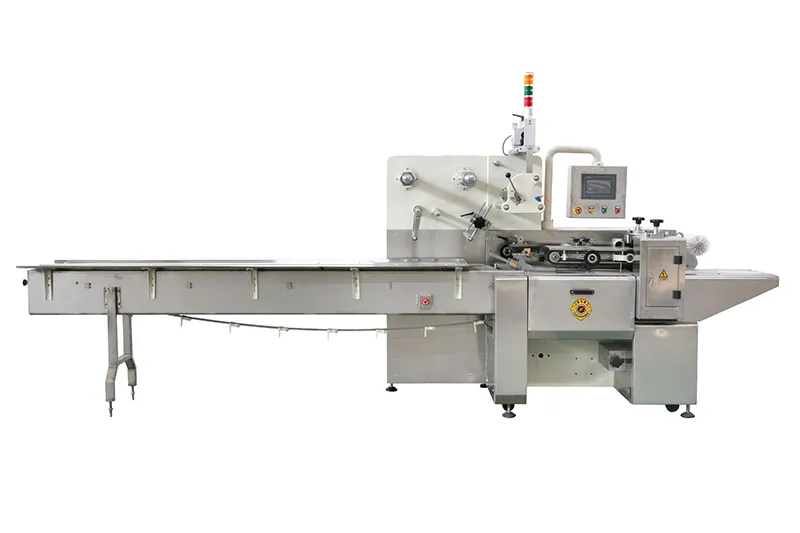

    Automatic pillow pack machine for packaging small-sized food products, medicines and industrial parts with or without trays

    Applications

    This horizontal flow wrapper is a multipack flow wrapping machine suitable for trayless multipack packaging of:

    • Horizontal Flow Wrapper, SF-EBiscuits
    • Horizontal Flow Wrapper, SF-EBread
    • Horizontal Flow Wrapper, SF-EPastry
    • Horizontal Flow Wrapper, SF-EInstant noodles
    • Horizontal Flow Wrapper, SF-EPharmaceutical products
    • Horizontal Flow Wrapper, SF-EIndustrial parts
    Features
    • Supports pack counting, pause and accumulation, as well as automatic tracking, alarm prompts, and fault recording with troubleshooting prompts functions
    • Features distributed servo drive control systems, with automatic search functions to correct the cutting point
    • Automatic bag length measurement, restart in case of failure, and dispensation functions
    • End-sealing heating circuit design allows for easy assembly and disassembly, without exposing the wiring circuit
    • Consists of an infeed conveyor and main unit, enabling stepless speed regulation within the specified range

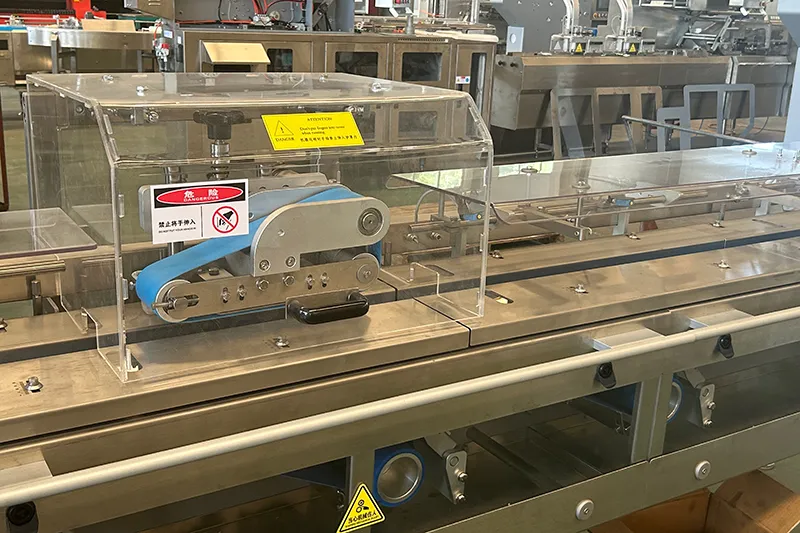

    • Horizontal flow wrapping machine performance complies with safety and environmental protection standards, and exposed transmission parts are equipped with removable safety guards
    • Utilizes a rotary transverse sealing knife structure to ensure smooth sealing and continuous operation, with high packaging speed, high efficiency, and stable, reliable operation. Making it suitable for various high-speed automatic packaging applications.
    Specifications
    Model SF-E 450/99 SF-E 450/120 SF-E 450/150 SF-E 590/120 SF-E 590/150 SF-E 680/180
    Bag material Laminated films suitable for hot-sealing: OPP/PP, PT/PE, AL/PE, etc.
    Max. film width (mm) 450 450 450 590 590 680
    Bag size (mm)
    L*W*H     		L: 90-400
    W: 10-150
    H: 5-25; 25-40     		L: 90-400
    W: 10-150
    H: 10-30; 30-55     		L: 120-450
    W: 10-150
    H: 30-50; 40-75     		L: 90-400
    W: 30-200
    H: 10-30; 30-55     		L: 120-450
    W: 30-200
    H: 30-50; 40-75     		L: 140-480
    W: 30-220
    H: 40-70; 60-100
    Capacity (bags/min) 30-200 30-180 30-150 30-150 30-120 30-100
    Overall dimensions (mm) 5000*900*1750 5000*1040*1750
    Total weight (kg) 1000 1200
    Power supply Single-phase 220 V, 50 Hz; total power < 6 kW
