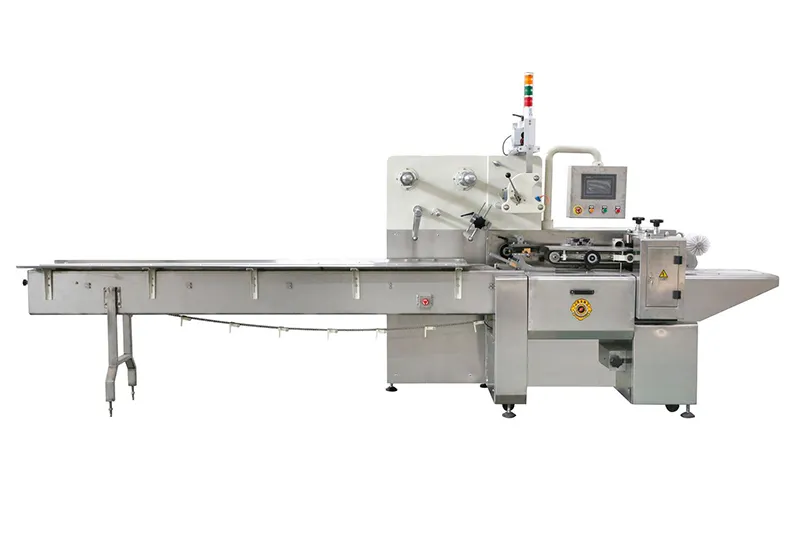

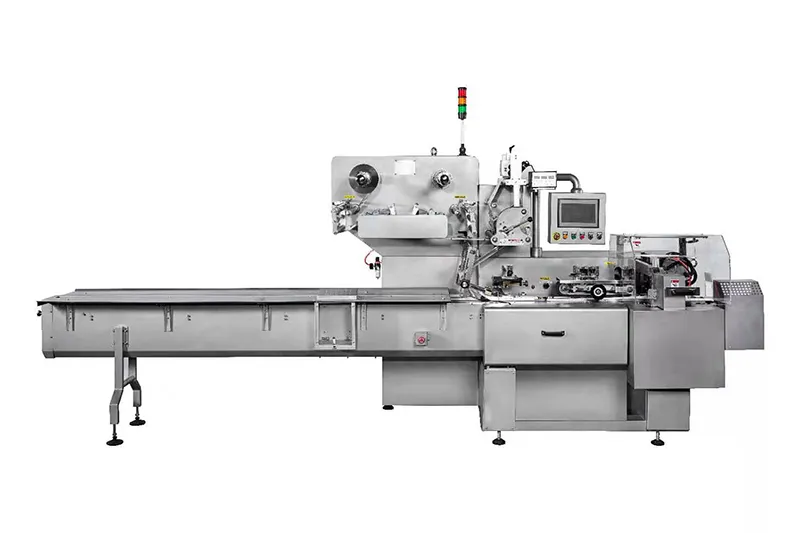

Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH
  • Flow Wrapping Machine, SF-EH

    • Flow Wrapping Machine, SF-EH

    Horizontal flow packaging machine using reciprocating motion to seal Bag material for wrapping high or irregular products

    Compared with rotary sealing, the box motion flow wrapper uses reciprocating motion sealing, which operates at a slightly lower speed but offers more stable sealing quality and a better appearance. This horizontal flow wrapper is more suitable for tall and irregular-shaped products, as well as for compact packaging of taller products with shorter bag lengths.

    Leave a Message
    Applications
    • Flow Wrapping Machine, SF-EHTray-packed biscuits
    • Flow Wrapping Machine, SF-EHInstant noodles
    • Flow Wrapping Machine, SF-EHPharmaceutical products
    Specifications
    Model SF-EH 590/120 SF-EH 590/150 SF-EH 680/120 SF-EH 680/150 SF-EH 720/150
    Max. film width (mm) ＜560 ＜560 ＜650 ＜650 ＜680
    Bag size (mm)
    L*W*H     		L:100-300
    W:30-170
    H:15-80     		L:120-350
    W:30-170
    H:30-100     		L:100-300
    W:30-260
    H:15-80     		L:120-350
    W:30-260
    H:30-100     		L:120-350
    W:60-260
    H:30-100
    Note:If corner tuck is not required,product width + product height <200 Note:If corner tuck is not required,product width + product height <300
    Capacity (bags/min) 30-80 30-70 30-70 30-50
    Overall dimensions (mm) 4730×1200×1800 (incl. 3 m conveyor) 4730×1300×1800 (incl. 3 m conveyor)
    Bag material Laminated films suitable for hot-sealing:Paper/PE,OPP/PE,PT/PE,AL/PE,etc.
    Total weight (kg) 1200 1200 1300 1300
    Motor power (kW) Main motor:1.5 kW (1 unit),film motor:0.75 kW (1 unit);infeed conveyor motor:0.75 kW (1 unit)
    Heating power 450W × 2 400W × 4
    Power supply Single-phase 220V,50Hz
    Total power (kW) 6 (excluding optional accessories)
